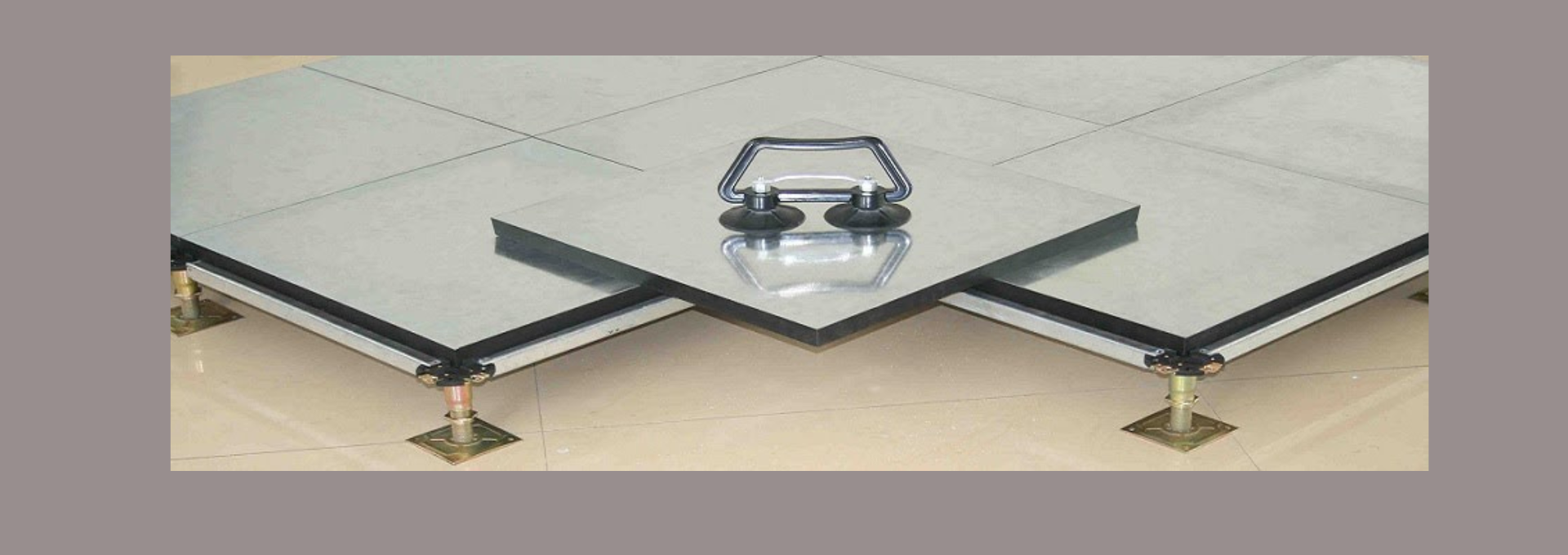

Calcium Sulphate Access Floor




Calcium sulphate panels

The Unifloor calcium sulphate raised floors meet the highest requirements in terms of fire safety.

Moreover, the acoustic properties of calcium sulphate panels are outstanding. Thanks to its high density of 1.500 kg/m³, this tile can also stand heavy loads.

The upper side of the tile is bare or with a glued layer of aluminium foil, steel, melamine, PVC, linoleum, rubber, carpet, hard laminate or stone.

The edges are cut under 5° and finished off with an edge band made of PVC.
The bottom side of the panel is bare or with a glued layer of aluminium foil against humidity or galvanized steel depending on the desired point load.

The standard dimensions are 600x600 mm, but other dimensions are available upon request. The standard thickness of the panel is 28 mm or 30 mm, excluding the covering, but other thicknesses are available upon request.


Under-structure Highlights
  • Top pedestal plate 90mm diameter x 3mm thick with panel locators
  • Bottom pedestal plate 100mm square x 3mm thick
  • Threaded rod assembly provides ±25mm pedestal height adjustment
  • Pedestal design ensures floor levelness is maintained
  • Supporting stringers to suit panel type
  • 50 mm long countersunk-head mechanical fastener for all corner fixed and rigid-grid stringer systems
  • Corrosion-resistant steel components

Performance Selection Chart
Unifloor Calcium Sulphate Raised Floor Panel
Panel Type
Panel Grade
Dynamic Load (kN)
Concentrated Load (kN)
Impact Load (kG)
Safety Factor
Uniform Load (kN/m2)
Construction
CS800B
Medium
3.6
4.5
50
3
16

Steel/Calcore/Steel
CS800H
Medium
3.6
4.5
50
3
16

HPL/Calcore/Steel
CS1000H
Heavy
4.5
5.5
50
3
20

HPL/Calcore/Steel




Features of Unifloor Calcium Sulphate Core Panels
  • Exceptionally high rolling load capacity
  • Improved acoustic properties
  • Non-combustible: Fire Resistant Class 0
  • Suitable for areas with high humidity and other specialist applications
  • Oversize panels available for perimeter details
  • Four sides are protected by edge trim
  • No volatile organic compounds (VOC’s) used
  • Exceeds PSA MOB PF2 PS/SPU specification standards



Recommended Applications
  • Light Duty - General office areas
  • Medium Duty - High density / populated office commercial areas
  • Heavy Duty - Plant rooms, server rooms
  • Extra Heavy - Specialist applications and exceptionally heavy equipment requirements


All our systems are tested and certified according to the highest international requirements. Thanks to our quality control, we are certain to always comply with the standards
